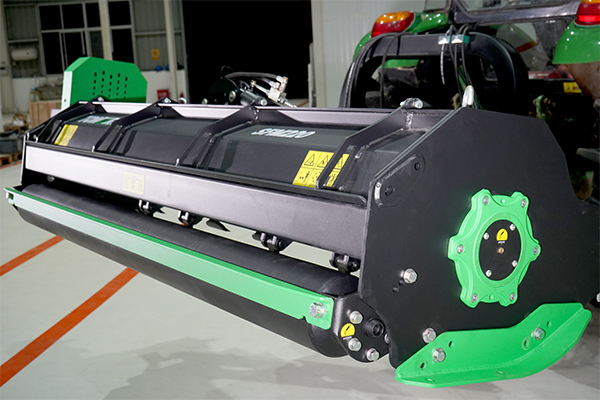

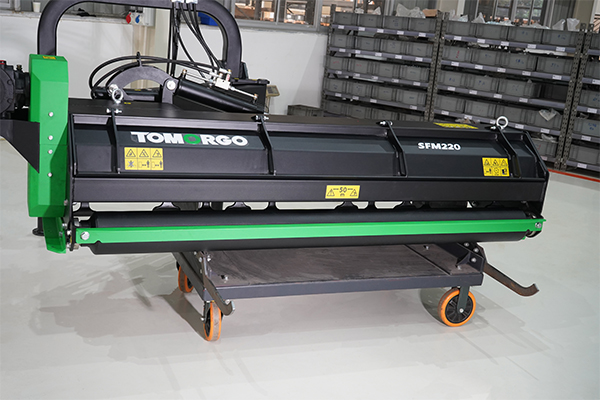

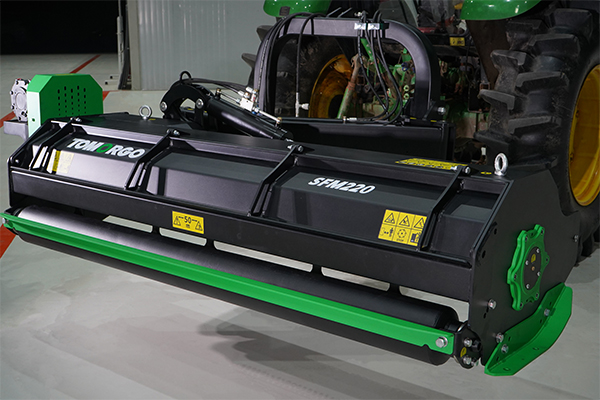

SFM Side Offset Mower

Designed for large-scale natural grassland with tall plants and uneven ground, Tomorgo SFM series flail mower can truly be called the heavy duty mower on the market. adapted to tractors of 90-120hp , which is not only used to pioneer wasteland, but also clean the weeds of slopes and ditches very flexibly due to the hydraulic side and offset structure. Of course, a special anti-collision protection devices is required to adapt to most rough suitation.

For the general artificially planted pastures with flat terrain, such as alfalfa, rye grass, oat grass, etc.,  and you can also work very easily. Just like the concept of TOMORGO, Maximize the expansion of the machine usage according to the users demand.

Where you can use it.

Natural grassland

Hillside fields

Road slope

Ditch slope





Working Width:

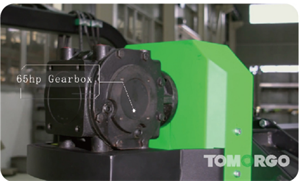

Gearbox:                                                1646976503529790.png






Category II


Suit for tractor Horsepower:



High-Grade steel for hood and side panel:

Tomorgo SFM series use Q345(European Standard:S355J2) grade steel for the

whole hood and side panel, and the most materials used on the market is Q235.

Q235 is ordinary carbon steel, while Q345 is low-alloy structural steel, Q345-- good

mechanical properties, low temperature performance can, good ductility and weldability,

used as the low-pressure vessels, tanks, vehicles, cranes, mining machinery, structural,

mechanical parts, building structures, metal structures in general, hot-rolled or normalizing

state power plants, bridges, etc. to withstand dynamic load of use, can be used for all kinds of steel above -40 ℃ cold areas.

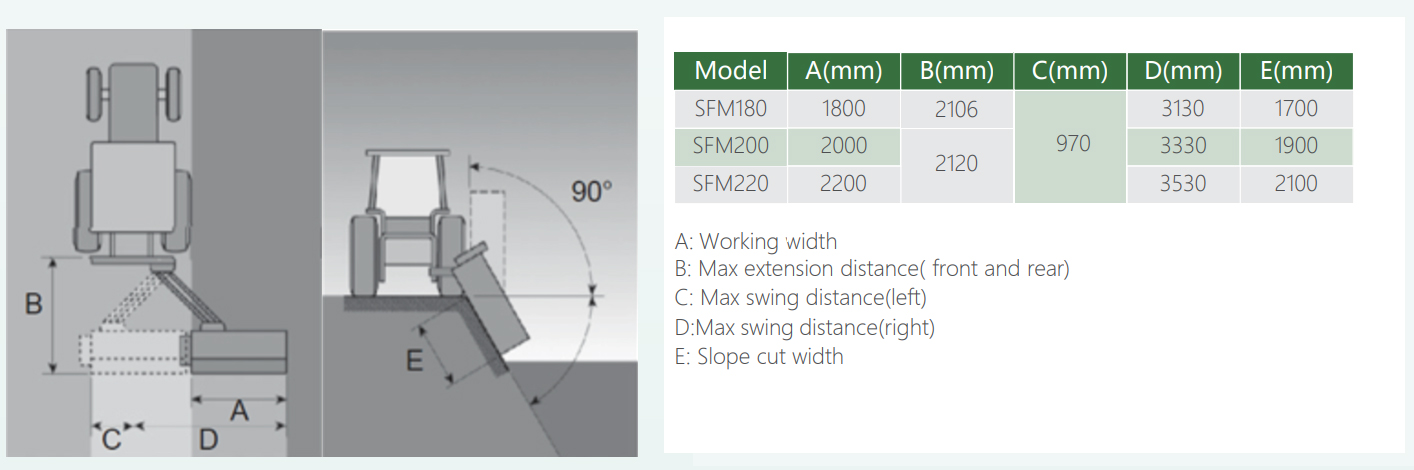

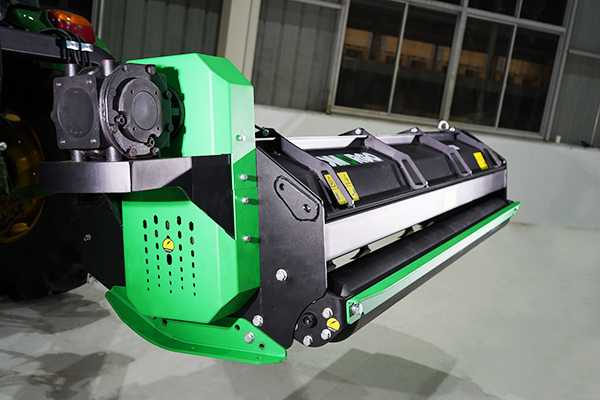

Overturn and side hydraulic offset :

Overturn feature can be used on mowing tree branches and road side or slops,


Side hydraulic offset can expand the mowing range, From the center of the PTO the mower

extends 970cm to the left and 3730cm to the right(the biggest model).

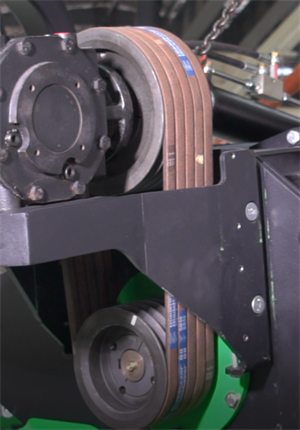

Driven Belts:

4pcs Gates Belts1647853039201607.png

Gates Corporation is a leading manufacturer of application-specific fluid power and power

transmission solutions. In our previous testing process, the service life of the GATES belt is

3 times that of the ordinary belt of the same specification. Belt is a wearing part, of course,

the more durable the better, which can increase the performance of the product and reduce

the trouble of replacement. All TOMORGO flail mower choose GATES belts.1646976532133588.png


Tomorgo always strives to be the best.


 Self-tensioner device:

Self-tensioner device can avoid slippage or overworking the belts, which will also greatly increase the belt life.

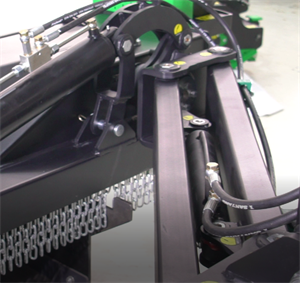

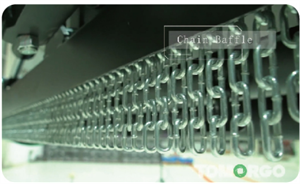

Chain Baffle:


Chain baffle is usually used for large flail mower, compare to the plate baffle, chain baffle design

can relieve the pressure of too much debris deposited in the mower cabin during the operation.

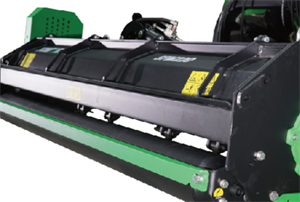

Manual Rear Gate:1646976546300176.png

Manual Rear Gate can help you clear the grass debris or replace the blades very easily, when a mower

without the rear gate, you need to lift the flail mower high enough to do this , which is inconvenient

and unsafe, when you choose a flail mower, the rear gate is really important.

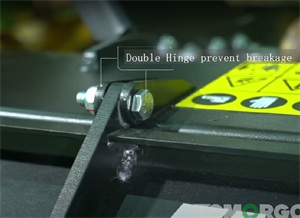

Double Hinge Prevent breakage:1646976555363561.png

10mm thickness double hinge to the open gate is really important, once breakage will cause

big troubles to users, so tomorgo machine choose double strong hinge used on the mower.

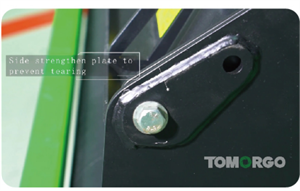

Side strengthen plate to prevent tearing:

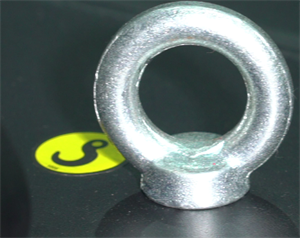

Lifting Hook:1646976572125464.png

Strong lifting hook will help you easily lift the machine after taken from the crate package ,

or you can move the mower by folklift to anywhere if necessary.

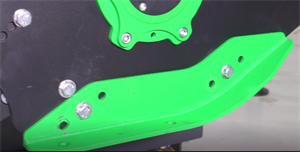

NM360 wear-resisting plate:


We use NM360 wear-resisting steel for the skate plate and thickness reach 6mm, increase the use life.


Rotor Shaft Diameter:





Rear Roller Diameter:





Blade Type:

Tomorgo FMH provide forged hammer blades  or  spring steel ,heat treated Y blades.

Hammer blades are used for clearing saplings and Y -blades are perfect for grasses.


Number of Blades:

SFM180: 16pcs hammer blades or 32+16 Y blades

SFM200: 18pcs hammer blades or 36+18  Y blades

SFM220: 20pcs hammer blades or 40+20 Y blades


Dynamic balanced rotor shaft:

Each flail mower cutter rotor with blades should be dynamic balanced, to ensure that

the mower will not be unstable due to vibration during the actual working process,

each Tomorgo flail mower rotor shaft unbalance weight is only allowed to be within 20g.


PTO Speed:

540 Only.


Rotor Shaft Speed:

2125 RPM


SKF Bearing:


SFM flail mower rotor cutter adopts SKF bearings.

SKF is the world's largest bearing manufacturer, and employs 44,000 people in 108

manufacturing units. It has the largest industrial distributor network in the industry,

with 17,000 distributor locations encompassing 130 countries. SKF is one of the largest

companies in Sweden and among the largest public companies in the world.


Powered Coat Finish:

Tomorgo uses powder painting, the powder used has been tested for sun protection and

environmental safety, and the adhesion is very good, can keep the machines in good look for many years.


Warranty and Service:

SFM series flail mower provide 2 years warranty period.

Our service department is staffed by professional technicians who inspect each machine before

it is shipped. And when you need technical assistance, you can also write directly to


SFM Series are widely used in most types of terrain, can work in a tilt from +90° to -45°, especially suitable for cleaning branches and weeds on embankments, highways, piers ,etc.

It can also be used for cutting under the canopy.


Hydraulic sideshift and overturn

Adjustable cutting height

Automatic belt tensioner design

Openable rear gate


Front chain protection or plate protection

Hammer blade or Y blade
