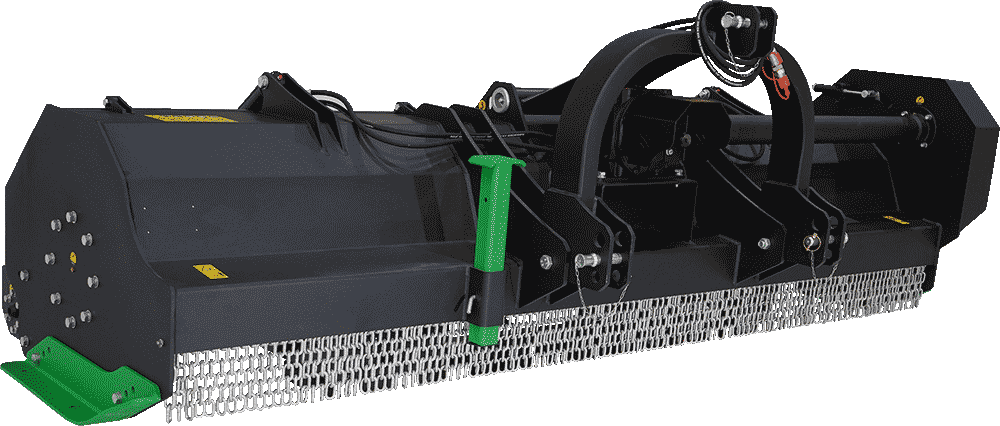

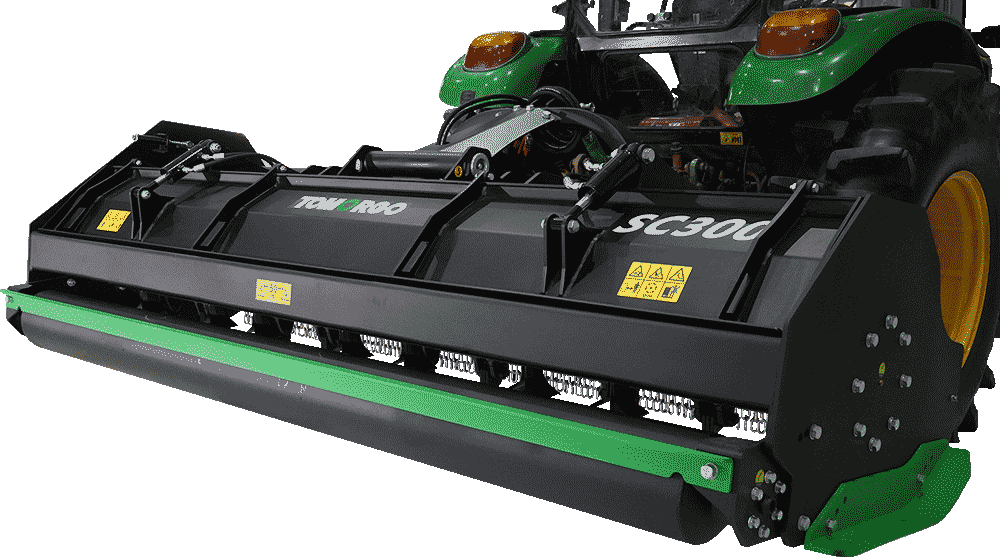

SC Stalk Crusher

The design concept of this machine comes from the flail mower model. Regarding the necessity of this product, we have discussed with the designer of this product for several months. In Xinjiang, China, many cotton farmers report that there is no suitable cotton stalk crusher on the market. They usually use flail mowers for shredding cotton stalks. However, due to the cotton stalks are very hard and flexible, and the overall structure of general flail mowers is too fragile, the machines are often damaged. Cotton farmers have been in a state of disappointment with frequent maintenance for a long time.

Before officially starting to sell this machine, we have more than 100 users used this machine. After 1 year of improvement and optimization, including the reinforcement of the entire steel structure, the selection of rotor cutters and different cutting blades, etc., Now you can use it to break cotton sticks with ease. our users usually say: once you use it, you don't want to try others.

Where you can use it.

Of course, since the design of this machine is derived from a flail mower,  In addition to the easy work on the cotton field which we are proud of, It can still cut Leguminosae and gramineae such as corn stalks, soybean stalks, wheat stalks and various grass branches.

Cotton stalks

Corn stalks

Soybean stalks

Wheat stalks

Grassland

......

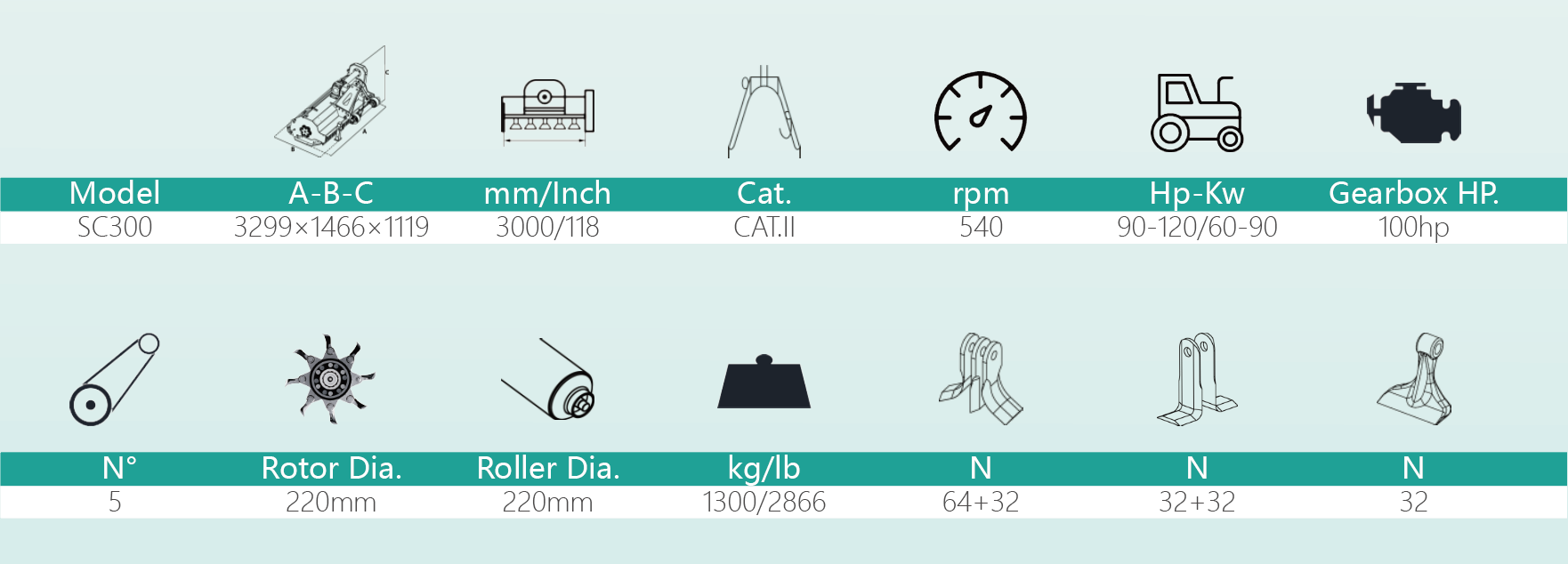

PRODUCT DETAILS

FEATURES
DESCRIPTION

Working Width:

3000cm

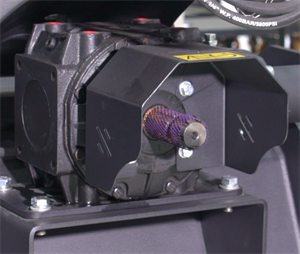

Gearbox:

100hp


Category:

Category II



Suit for tractor Horsepower:

90-120hp/67-90KW



High-Grade steel for hood and side panel:

Tomorgo SC300 use Q345(European Standard:S355J2) grade steel for the whole hood and side panel,

and the most materials used on the market is Q235.



Q235 is ordinary carbon steel, while Q345 is low-alloy structural steel, Q345-- good mechanical properties,

 low temperature performance can, good ductility and weldability, used as the low-pressure vessels, tanks,

vehicles, cranes, mining machinery, structural, mechanical parts, building structures, metal structures in general,

hot-rolled or normalizing state power plants, bridges, etc. to withstand dynamic load of use, can be used for all

kinds of steel above -40 ℃ cold areas.

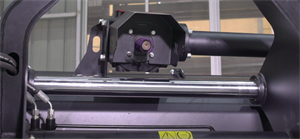

Hydraulic offset from PTO CENTER:

This feature can expand the mowing range, From the center of the PTO the mower extends 23cm to the left

and 86cm to the right(the biggest model).

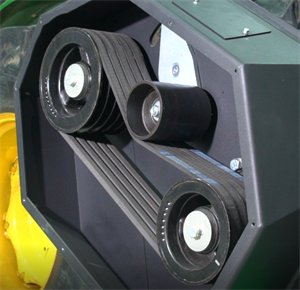

Driven Belts:

5pcs Gates Belts 1647854355110474.png

Gates Corporation is a leading manufacturer of application-specific fluid power and power transmission solutions.

In our previous testing process, the service life of the GATES belt is 3 times that of the ordinary belt of the same

specification. Belt is a wearing part, of course, the more durable the better, which can increase the performance

of the product and reduce the trouble of replacement. All TOMORGO flail mower choose GATES belts.


Self-tensioner device:

Self-tensioner device can avoid slippage or overworking the belts, which will also greatly increase the belt life.

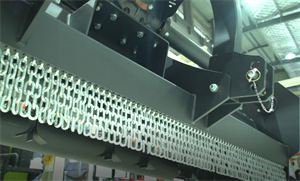

Chain Baffle:

1646976089733721.png 8mm chain baffle is usually used for large flail mower, compare to the plate baffle,

chain baffle design can relieve the pressure of too much debris deposited in the mower cabin during the operation.

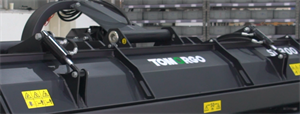

Double hydraulic Rear Gate:

1646976097499435.pngConsidering the SC300 rear gate is very heavy, it is designed to be driven by double hydraulic cylinders ,

 the rear gate help you clear the grass debris or replace the blades very easily, when a mower without the

rear gate, you need to lift the flail mower high enough to do this , which is inconvenient and unsafe,

when you choose a flail mower, the rear gate is really important.

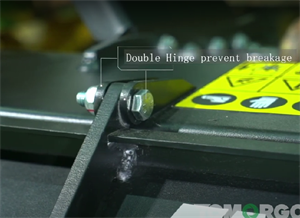

Double Hinge Prevent breakage:

10mm thickness double hinge to the open gate is really important, once breakage will cause big troubles

to users, so tomorgo machine choose double strong hinge used on the mower.

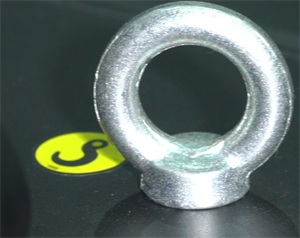

Lifting Hook:

Strong lifting hook will help you easily lift the machine after taken from the crate package , or you can

move the mower by folklift to anywhere if necessary.1646976112525112.png

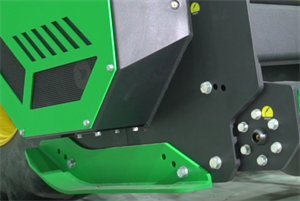

NM360 wear-resisting plate:

1646976119605518.pngWe use NM360 wear-resisting steel for the skate plate and thickness reach 6mm, increase the use life.

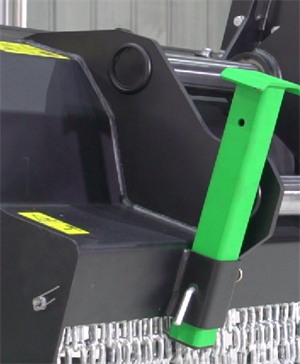

Stand foot:

1646976126961218.pngThe Stand foot have 2 holes, one is used as a support when the machine is not in use and the another one is used during operation.



Rotor Shaft Diameter:

220mm



Rear Roller Diameter:

220mm

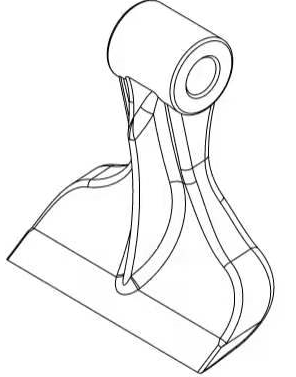

Blade Type:

Tomorgo FMH provide forged hammer blades or spring steel, heat treated L blades/ Y blades.

Hammer blades are used for clearing saplings and Y -blades are perfect for grasses, L blades are specially for cotton stalks.



Number of Blades:

Hammer blades: 32pcs

Y blades: 64+32pcs

L blades: 32+32pcs



Dynamic balanced rotor shaft:

Each flail mower cutter rotor with blades should be dynamic balanced, to ensure that the mower

will not be unstable due to vibration during the actual working process, each Tomorgo flail mower

rotor shaft unbalance weight is only allowed to be within 20g.



PTO Speed:

540 Only.


Rotor Shaft Speed:

2125 RPM



SFK Bearing Option:

The SKF bearings can be an option for rotor cutter if in need.

SKF is the world's largest bearing manufacturer, and employs 44,000 people in 108 manufacturing units. 1646976136147449.png

It has the largest industrial distributor network in the industry, with 17,000 distributor locations encompassing

130 countries. SKF is one of the largest companies in Sweden and among the largest public companies in the world.



Powered Coat Finish:

Tomorgo uses powder painting, the powder used has been tested for sun protection and environmental safety,

and the adhesion is very good, can keep the machines in good look for many years.


Warranty and Service:

SC series flail mower provide 2 years warranty period.

Our service department is staffed by professional technicians who inspect each machine before it is shipped.

And when you need technical assistance , you can also write directly to support@tomorgo.com

Description:

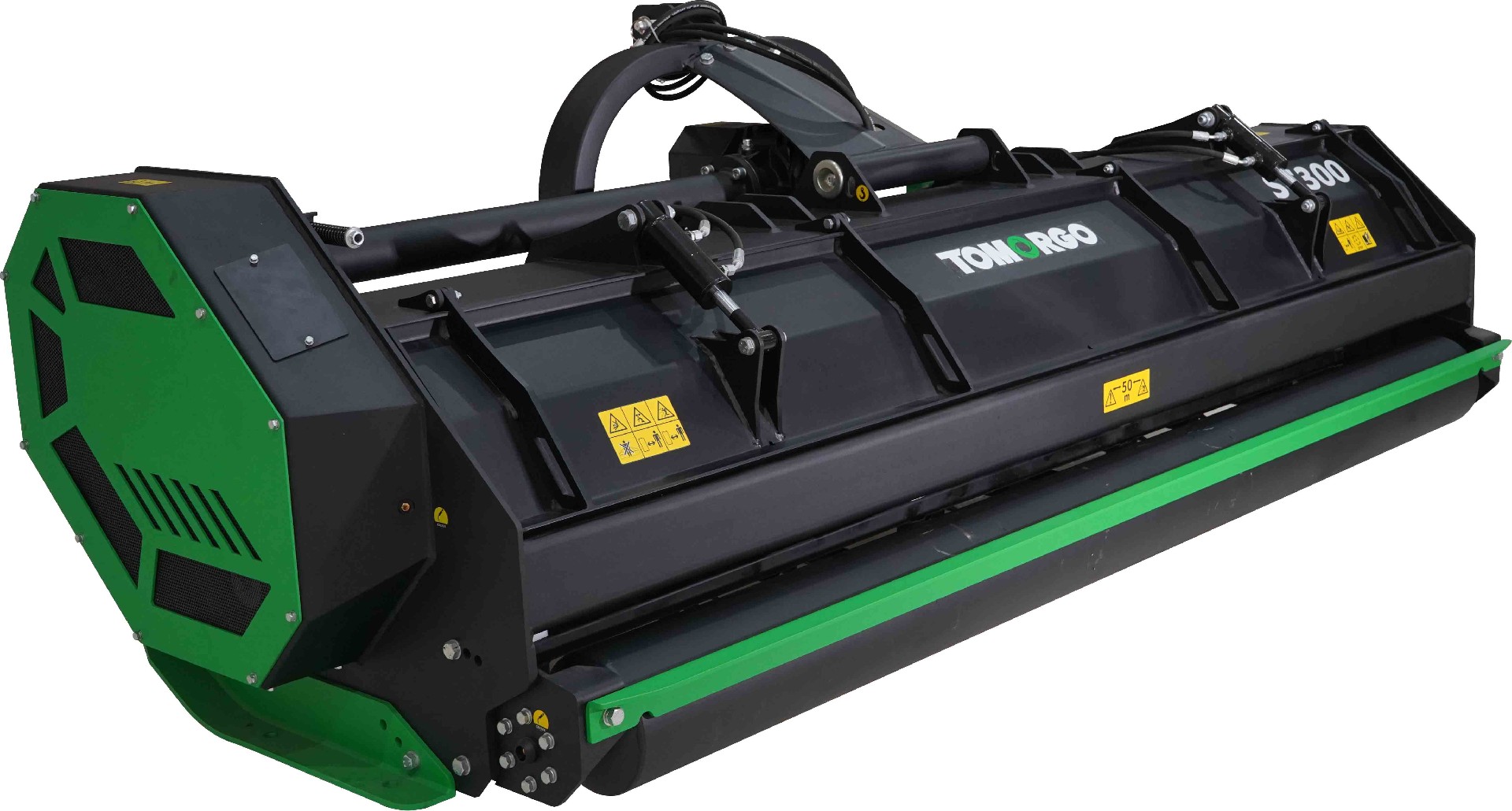

The SC300 stalk crusher is specially designed for crushing cotton stalk and shrubs, corn stalk,soybean stalk,rice stalk, wheat stalk, suitable for 90-120hp tractor.

The chopped straws are evenly thrown on the ground, which increases soil organic matter and nutrients, protect the ecological environment and reduce pests and diseases.

Features:

Unique chamber design ensures maximum crushing of straw

Adjustable cutting height

Automatic belt tensioner design

Openable rear gate

Optional:

Front chain protection or plate protection

L blade, Y blade or Hammer blade

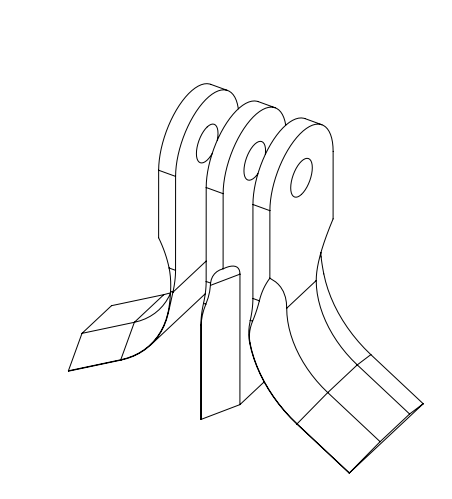

Regarding the blade selection:

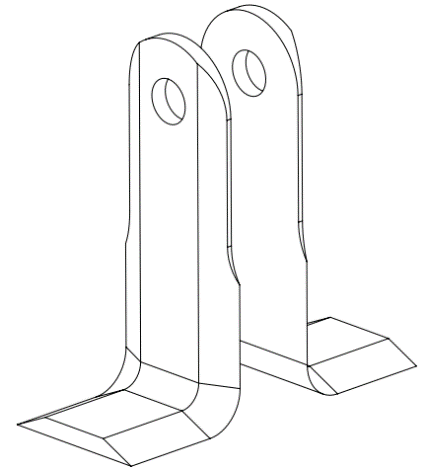

Cotton stalks are very tough, using a special double L –shaped blade can effectively break the  stalks and make sure the straw roots are very neat after work.

3 Y –shaped blades are more suitable for soft corns , besides that, we also provide hammer blades for all kinds of bushes on grassland.

图片4.png 图片5.png图片6.png
