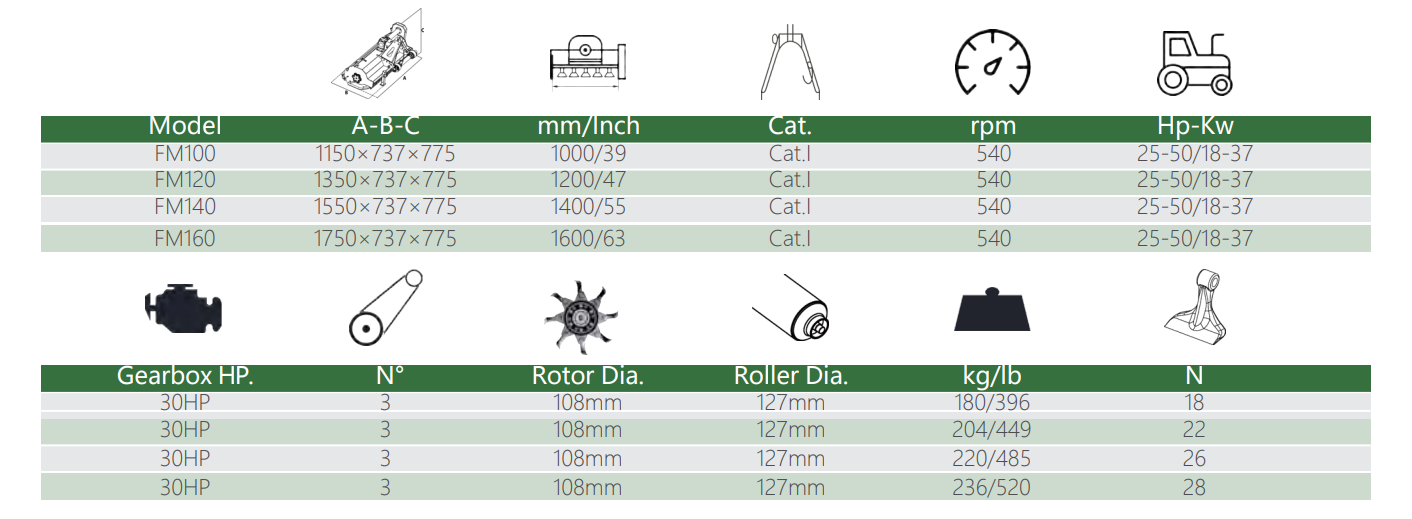

Working Width:

FM100-1000mm

FM120-1200mm

FM140-1400mm

FM160-1600mm

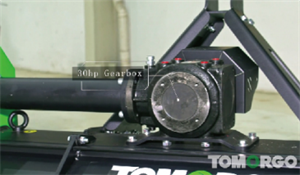

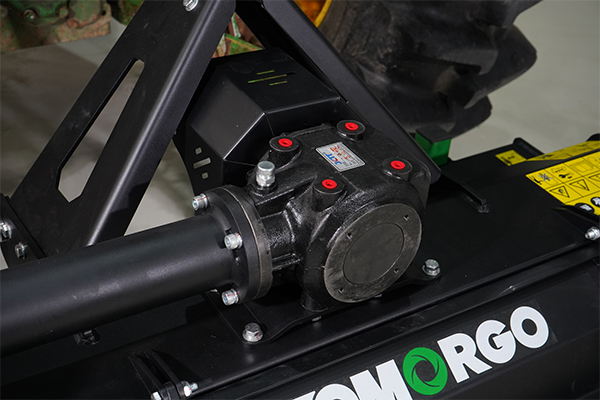

Gearbox:

30hp

Category:

Category I

Suit for tractor Horsepower:

25-50hp/18-37KW

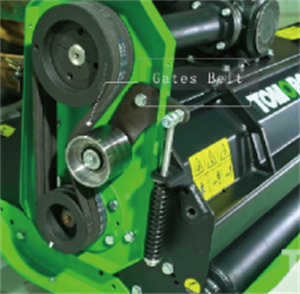

Driven Belts:

3pcs Gates Belts

Gates Corporation is a leading manufacturer of application-specific fluid power

and power transmission solutions. In our previous testing process, the service life

of the GATES belt is 3 times that of the ordinary belt of the same specification.

Belt is a wearing part, of course, the more durable the better, which can increase

the performance of the product and reduce the trouble of replacement.

All TOMORGO flail mower choose GATES belts.

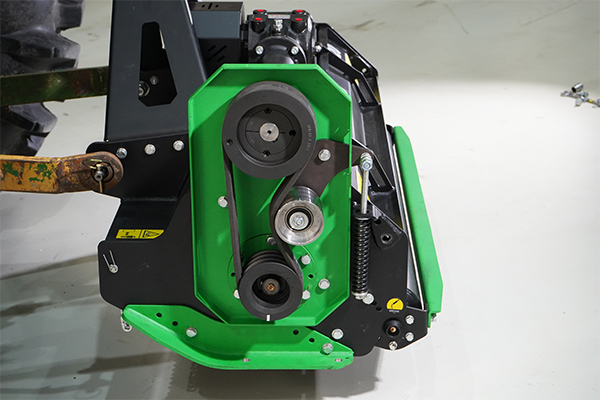

Self-tensioner device:

Self-tensioner device can avoid slippage or overworking the belts,

which will also greatly increase the belt life.

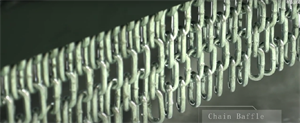

Chain Baffle:

Chain baffle is usually used for large flail mower, compare to the plate baffle,

chain baffle design can relieve the pressure of too much debris deposited

in the mower cabin during the operation.

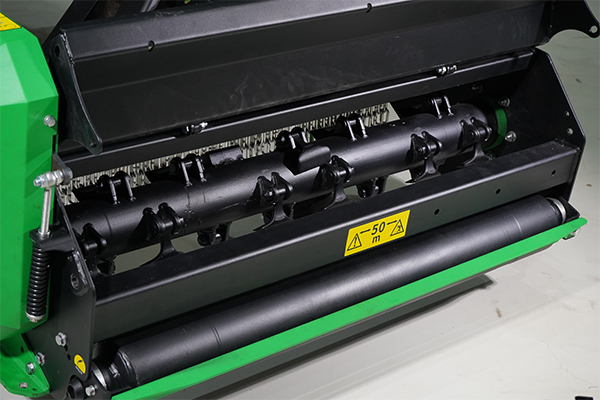

Manual Rear Gate:

Manual Rear Gate can help you clear the grass debris or replace the blades very easily,

when a mower without the rear gate, you need to lift the flail mower high enough to do this ,

which is inconvenient and unsafe, when you choose a flail mower, the rear gate is really important.

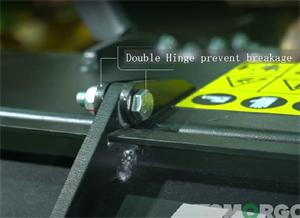

Double Hinge Prevent breakage:

Hinge to the open gate is really important, once breakage will cause big troubles to users,

so tomorgo machine choose double strong hinge used on the mower.

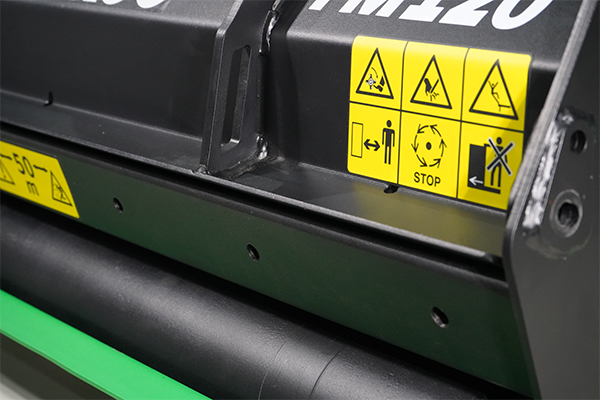

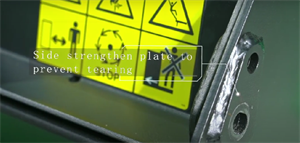

Side strengthen plate to prevent tearing:

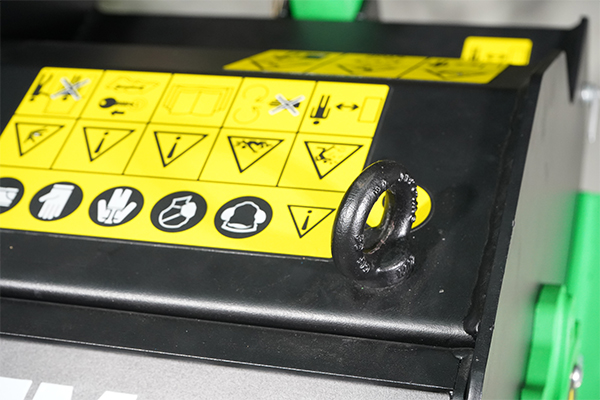

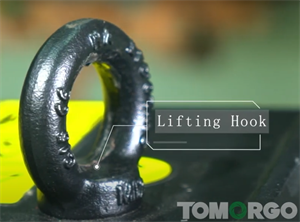

Lifting Hook:

Strong lifting hook will help you easily lift the machine after taken from the crate package ,

or you can move the mower by folklift to anywhere if necessary.

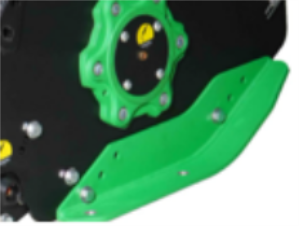

NM360 wear-resisting plate:

We use NM360 wear-resisting steel for the skate plate and thickness reach 6mm, increase the use life.

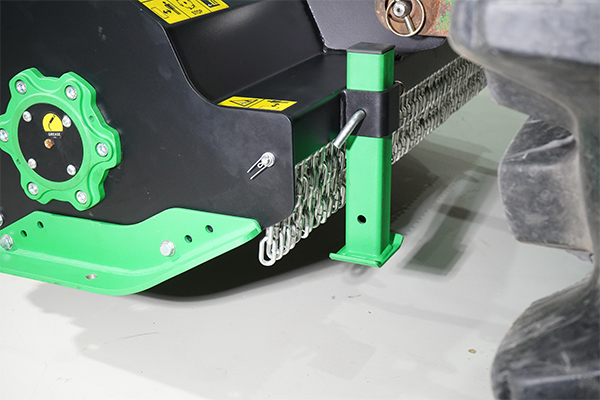

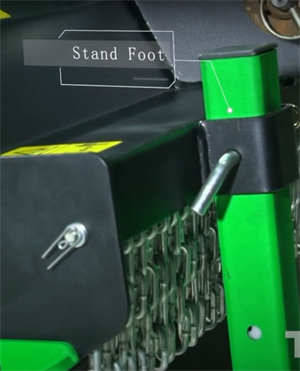

Stand foot:

The Stand foot have 2 holes, one is used as a support when the machine is not

in use and the another one is used during operation.

Rotor Shaft Diameter:

108mm

Rear Roller Diameter:

127mm

Blade Type:

Tomorgo hammer blades are made from 40Cr, alloy structural steel , cast steel, each blade weight 350g.

Number of Blades:

FM100: 18pcs hammer blades

FM120: 22pcs hammer blades

FM140: 26pcs hammer blades

FM160: 28pcs hammer blades

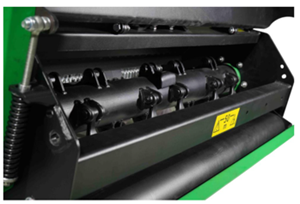

Dynamic balanced rotor shaft:

Each flail mower cutter rotor with blades should be dynamic balanced,

to ensure that the mower will not be unstable due to vibration during the actual working process,

each Tomorgo flail mower rotor shaft unbalance weight is only allowed to be within 20g.

PTO Speed:

540 Only.

Rotor Shaft Speed:

2125 RPM

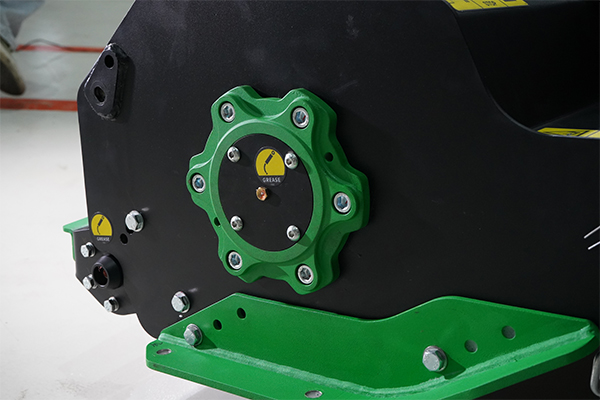

SKF Bearing:

FM flail mower rotor cutter adopts SKF bearings.

SKF is the world's largest bearing manufacturer, and employs 44,000 people

in 108 manufacturing units. It has the largest industrial distributor network in the industry,

with 17,000 distributor locations encompassing 130 countries. SKF is one of the largest companies

in Sweden and among the largest public companies in the world.

Powered Coat Finish:

Tomorgo uses powder painting, the powder used has been tested for sun protection and environmental safety,

and the adhesion is very good, can keep the machines in good look for many years.

Warranty and Service:

FM series flail mower provide 2 years warranty period.

Our service department is staffed by professional technicians who inspect each machine before it is shipped.

And when you need technical assistance , you can also write directly to support@tomorgo.com
