Details

Product Details

LS27Ton Log Splitter

Tomorgo towable 27-ton log splitter with its 212cc Loncin engine easily powers through the tough logs. The fast cycle time of 11-second and automatic return valve reduce your working time, and the handy log catches can easily adjust from horizontal to vertical save your back.



Where you can use it.

PRODUCT DETAILS

FEATURES
DESCRIPTION

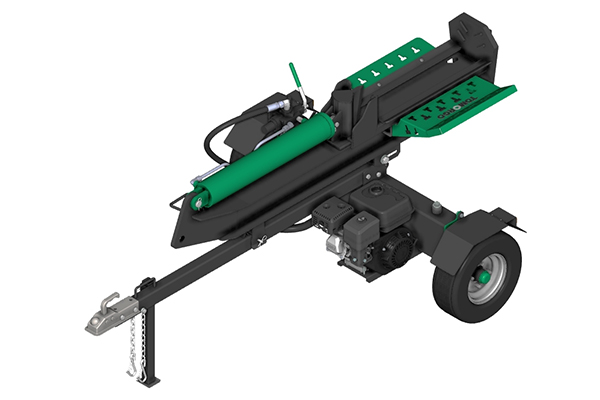

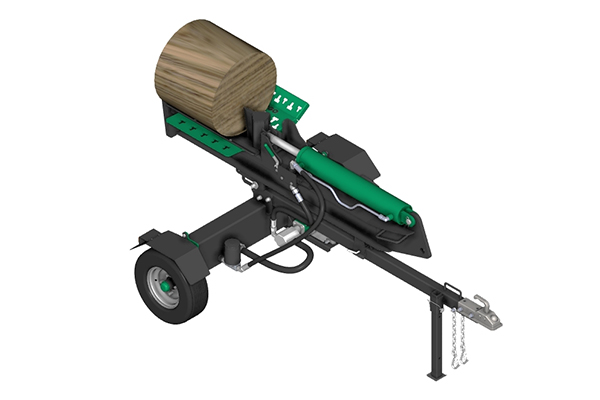

LS27Ton Horizontal/Vertical Full Beam Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks.

Depend on the reliable recoil start to start up the powerful 212 single-cylinder OHV engine, which features a cast-iron sleeve, a 3.6L fuel tank, 0.6L oil capacity (recommended 10W-30) and a low-oil shutoff for safety.

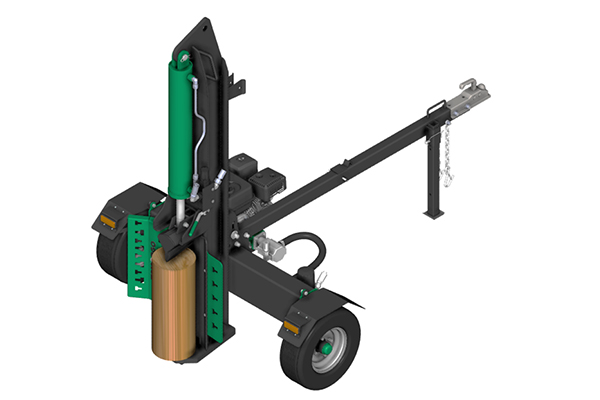

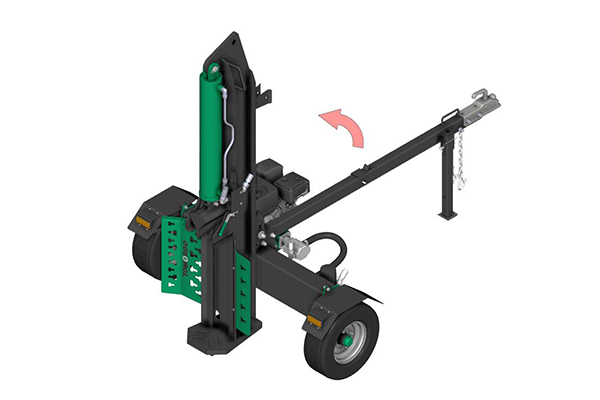

Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24 inches long, weighing up to 45kgs.

27 tons of splitting capacity deliver the power you need. The hydraulic oil system has a 17L oil capacity and operates at 40 lpm to power through tough logs.

This log splitter for efficiency with the fast 11-second cycle time, expanded operator area and dependable auto-return valve, which is capable of over 300 cycles per hour. The handy log catchers save your back by keeping your freshly-split wood within easy reach.

The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.

This log splitter will fit in most truck beds, plus it’s easily towable with ECE/DOT-approved wheels for up to 72 kmph, a 2-inch ball hitch coupler and an extended tongue that will fit most ATV/UTV towing applications.

This log splitter is EPA certified and CARB compliant. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.


Powerful

27 tons of splitting capacity with a large 212cc single-cylinder OHV engine

Versatile

Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease

Efficient

11-second cycle time, expanded operator area and dependable auto-return valve capable of over 300 cycles per hour

Portable

Towable up to 72 kmph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires

Reliable

Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Specification:

Ram Force

27T

Operating Position

Horizontal, Vertical

Cycle Time

11 s.

Max Log Length

24 in.

Max Log Weight

45 kg

Log Cradles

Yes

Log Catchers

Yes

Auto Return

Yes

Wedge Type

Single

Wedge Material

Hardened Steel

Cylinder Diameter

3.9 in.

Cylinder Rod Size

1.6 in.

Hydraulic Pump

2-Stage

Hydraulic Flow Rate

40 l/min

Hydraulic Oil System Capacity

17 L.

Hydraulic Oil Tank Capacity

15 L.

Hydraulic Oil Type

AW-32, Universal Hydraulic Oil, Automatic Transmission Fluid

Hydraulic Filter

Internal/External

Power Type

Gasoline

Start Type

Recoil

Engine Size

212cc

Engine Type

4-stroke

Gasoline Capacity

3 L

Engine Oil Type

10W-30

Engine Oil Capacity

0.45 L..

Engine Oil Included

No

Wheels

Yes

Wheel Type

Pneumatic

Wheel Diameter

16 in.

Towable

Yes

Hitch Type

2 in. Ball Hitch

Fenders

Yes

Max Tow Speed

72  kmph

EPA  Certified

Yes

CARB Compliant

Yes
